Get the best of all worlds with our Waterson K51M-450-D3 self-closing hinge. It's in stock right now and offers superior speed control, adjustable power, and tension settings, as well as a hydraulic function and hold-open feature
Note: We currently have stock available! Simply send us a request!
- DESCRIPTION
- DETAILS
- SPECIFICATIONS
- VIDEO
-

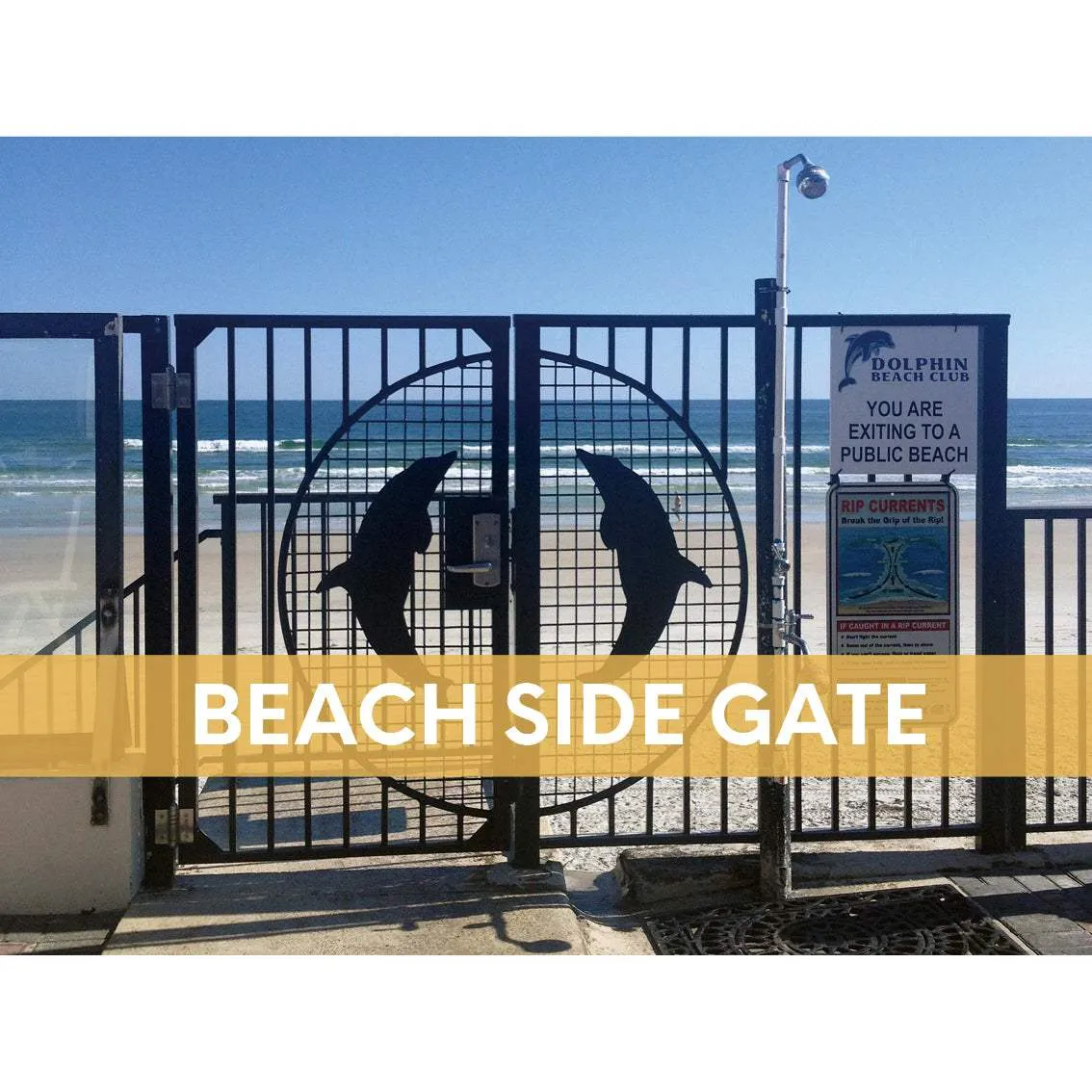

Applications
- Gate Entry

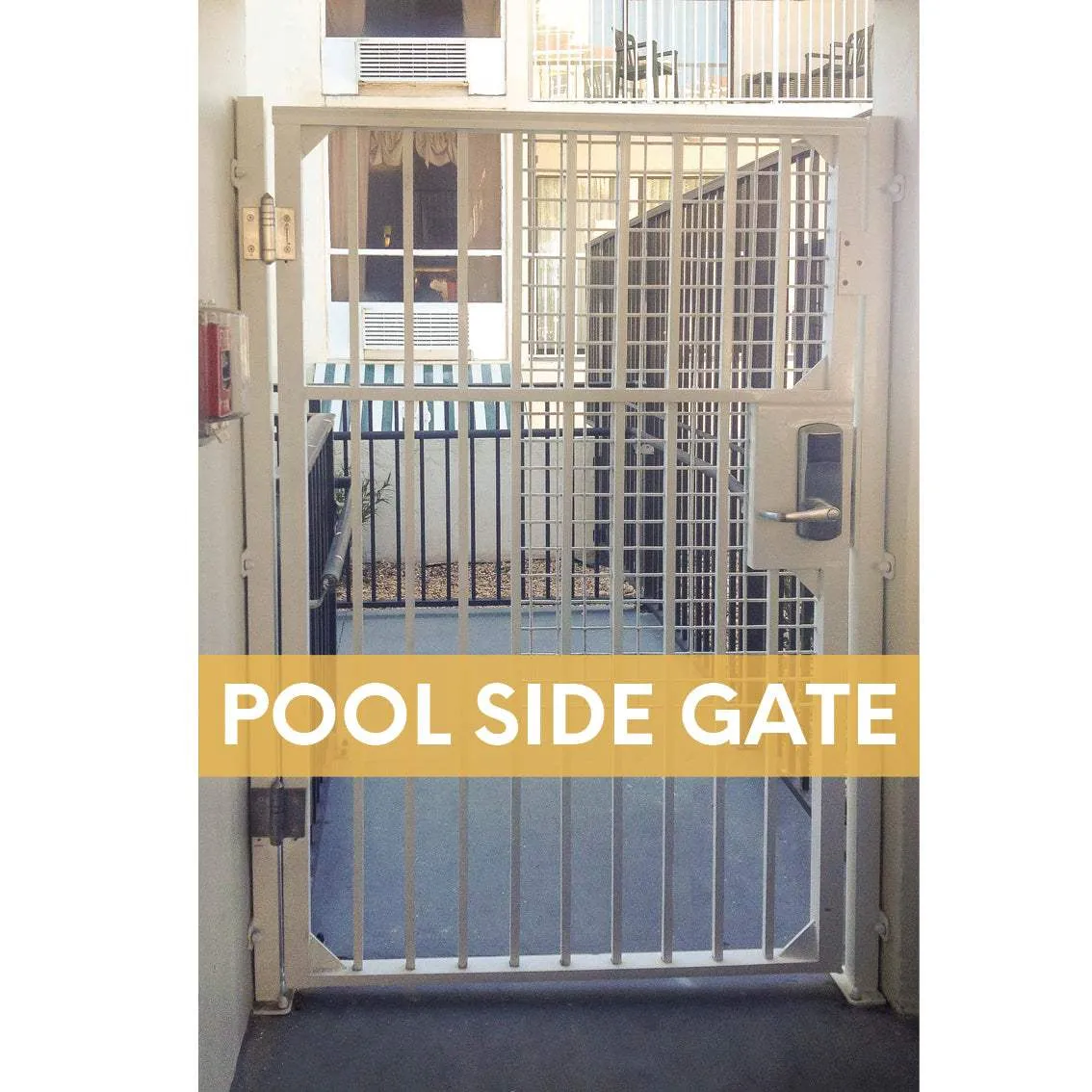

- Pool Gate
- Fully Exterior
- Courtyard Style
- Breezy environments
- Need Solutions? We got your back!

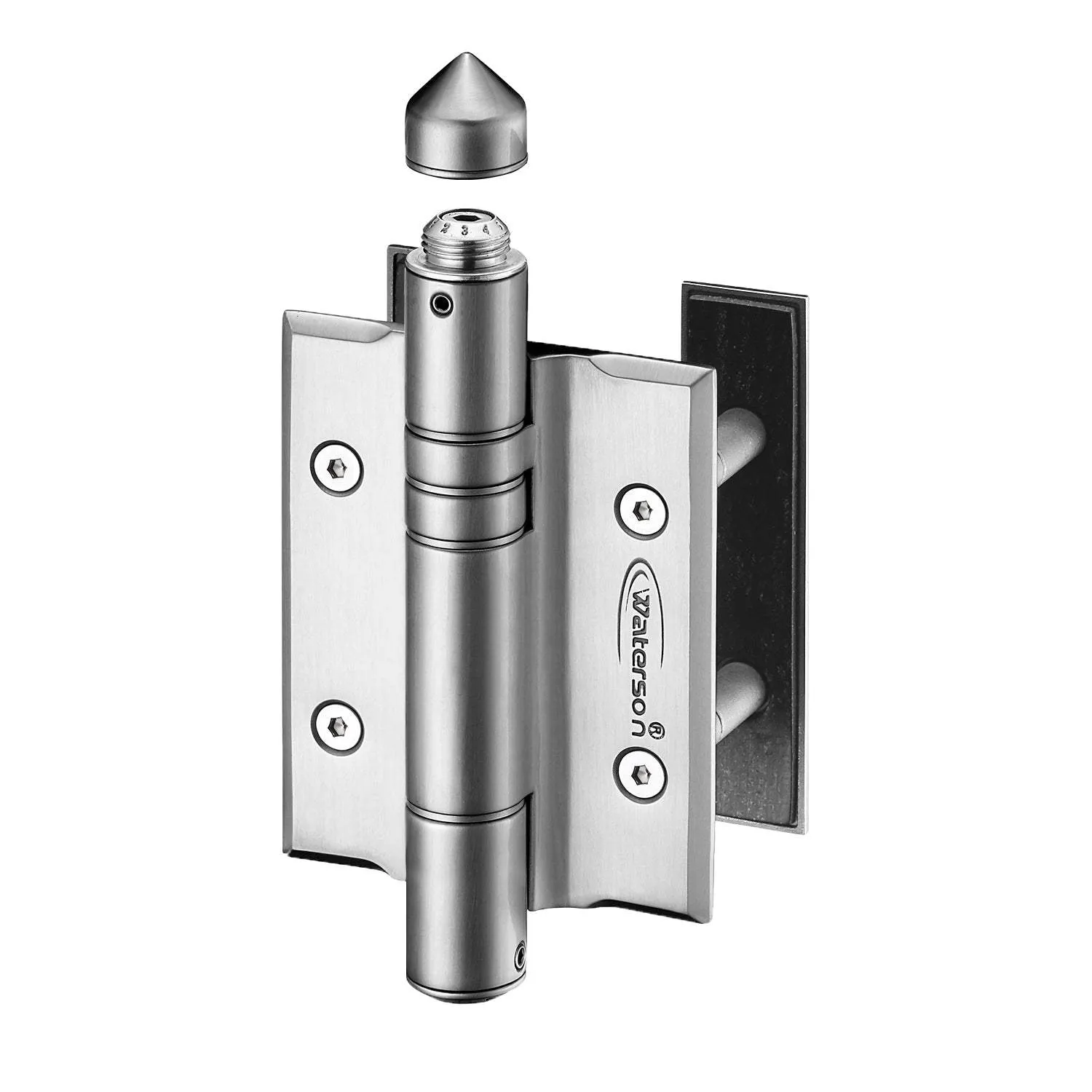

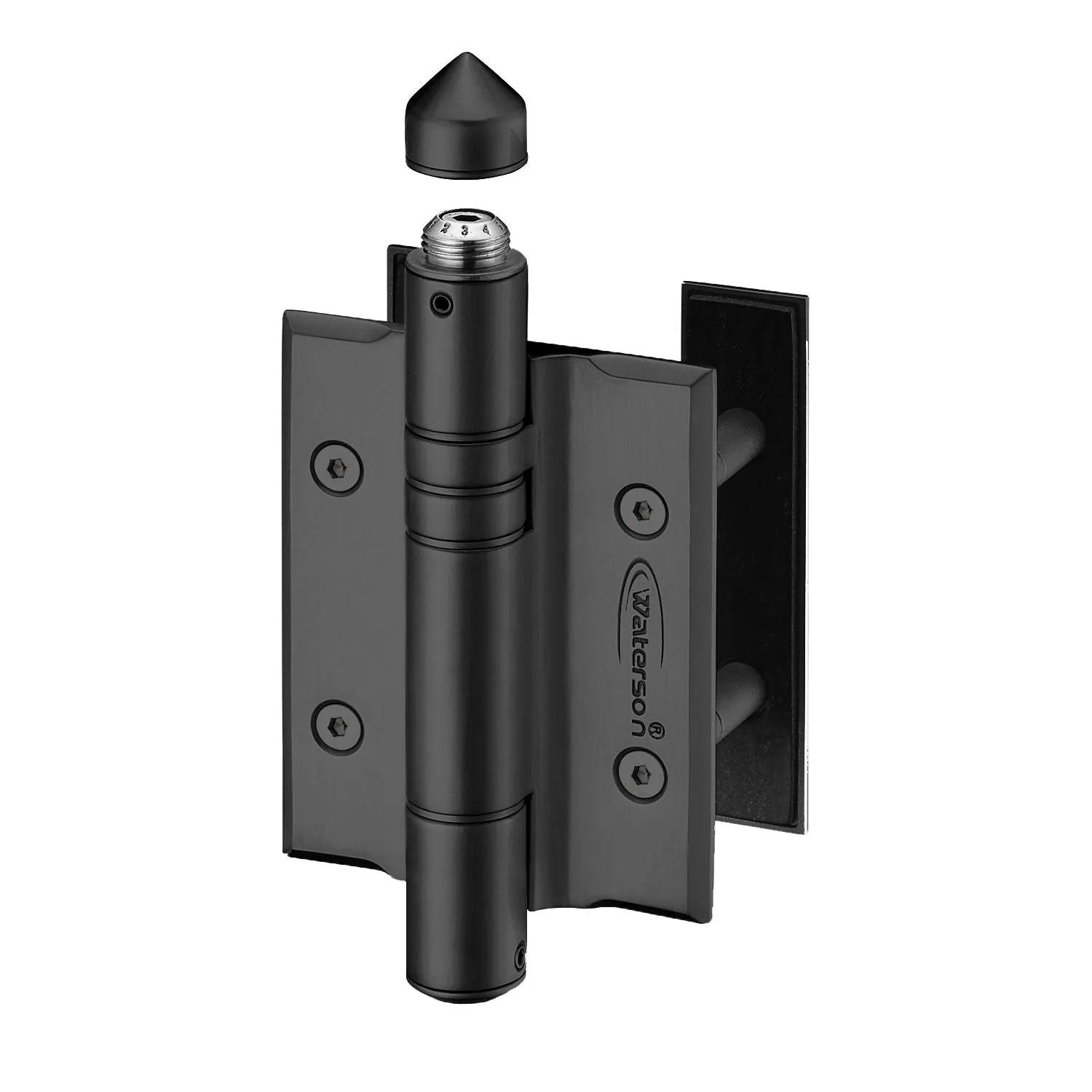

Product Description and Features

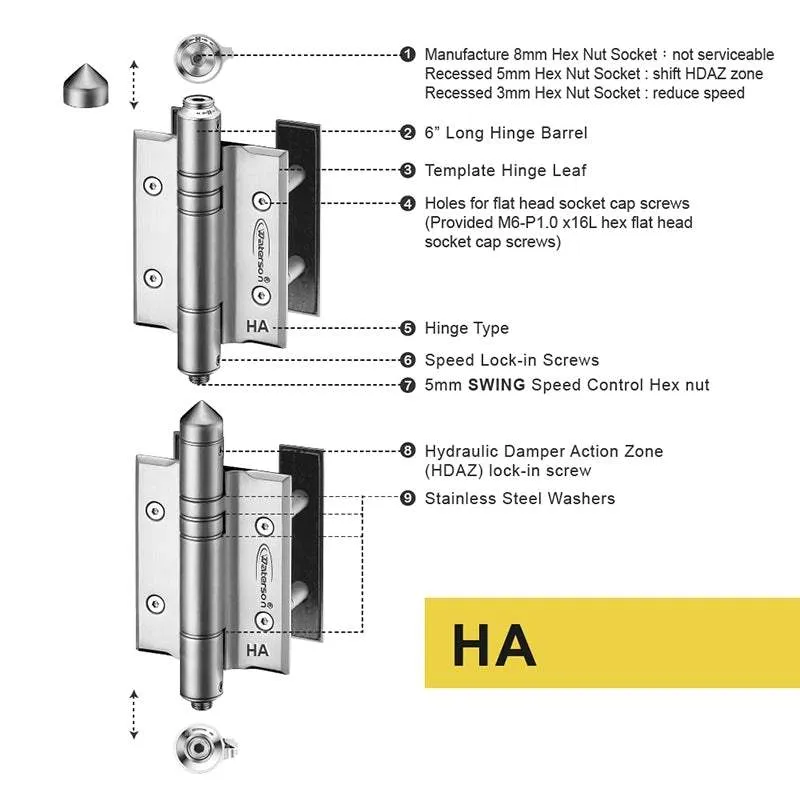

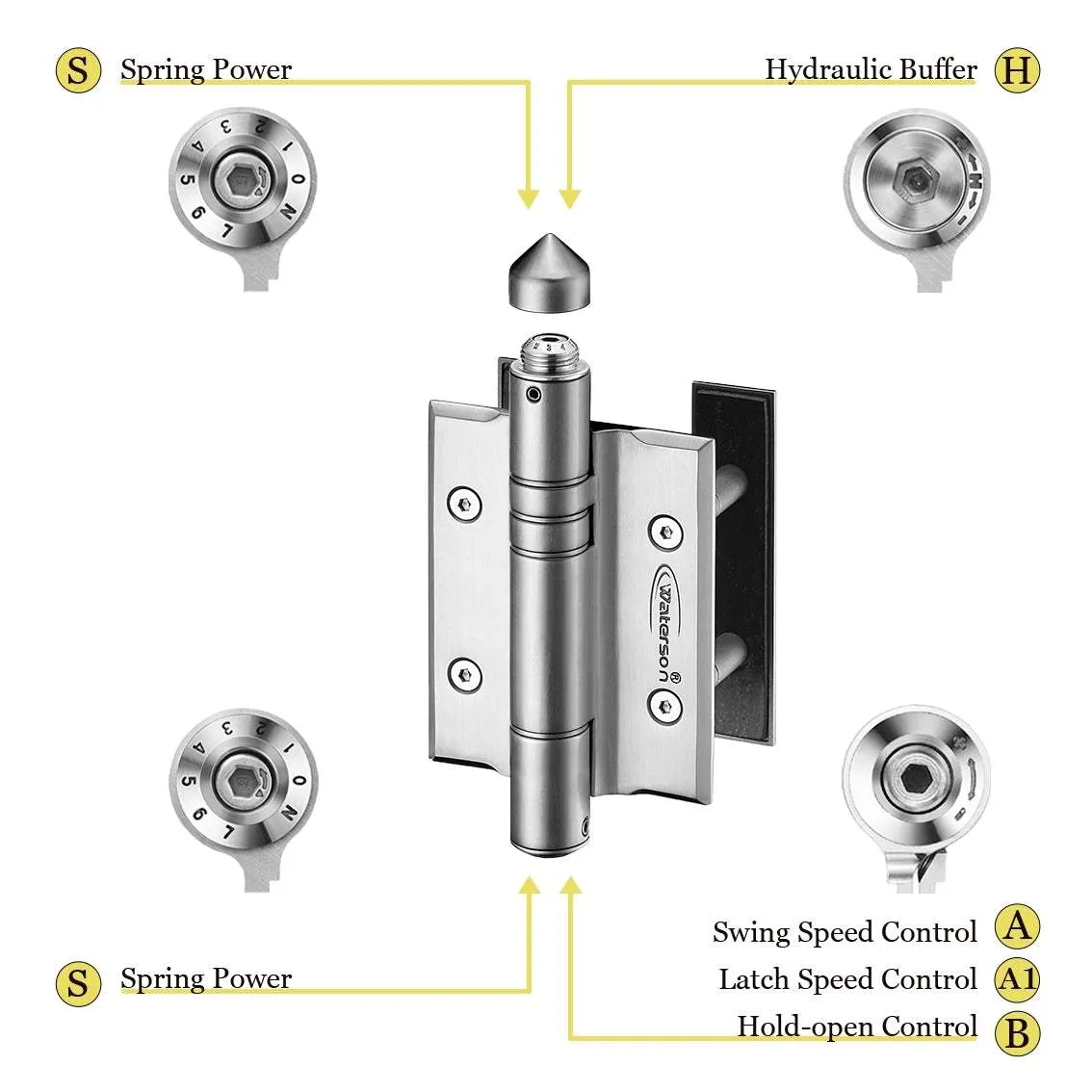

- Fully adjustable closing force and speed according to environment needs

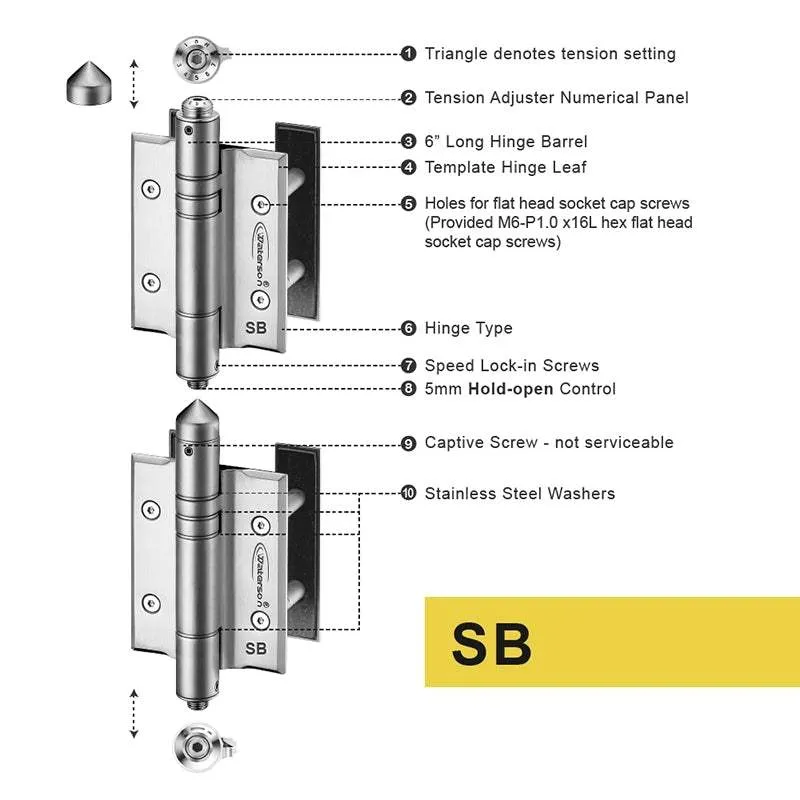

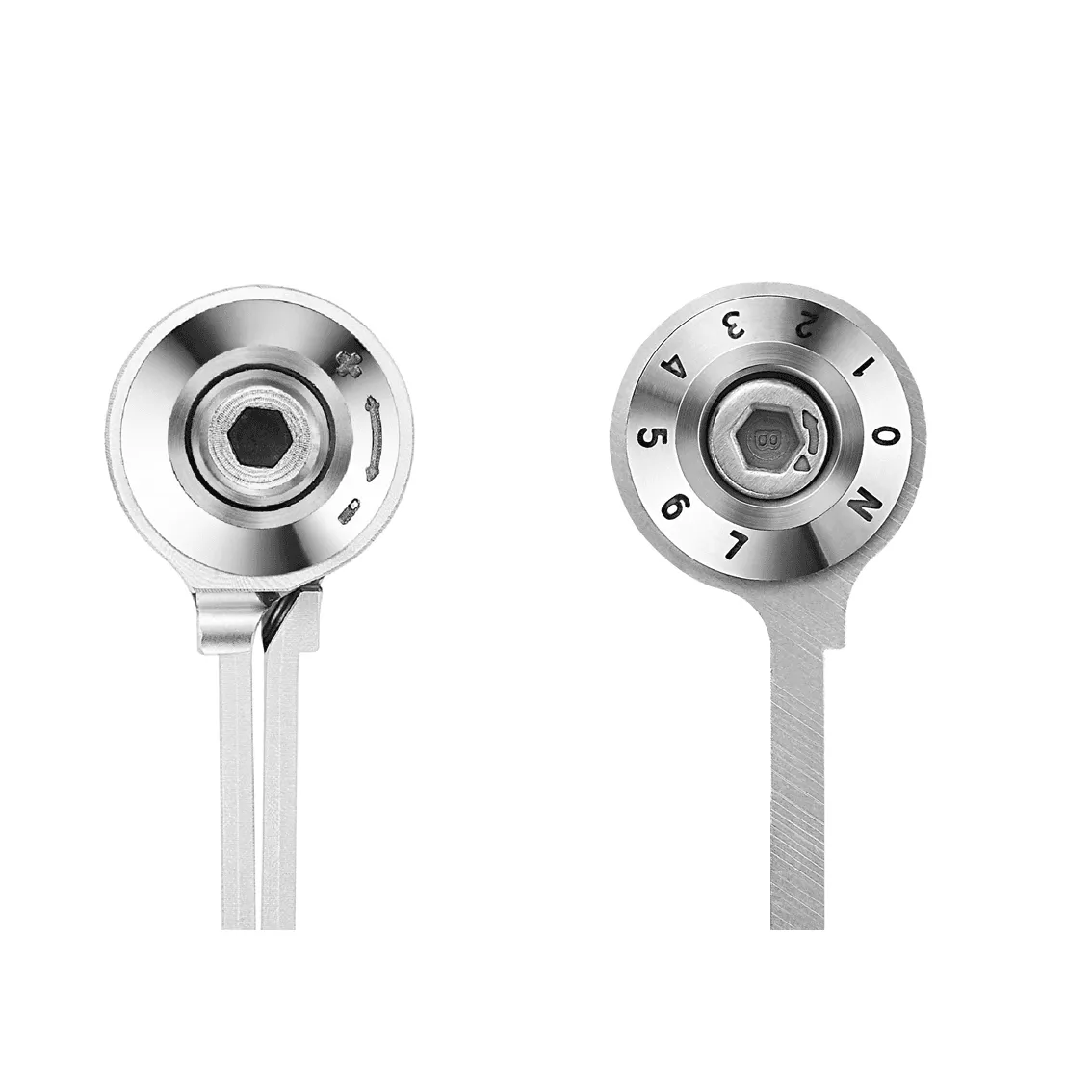

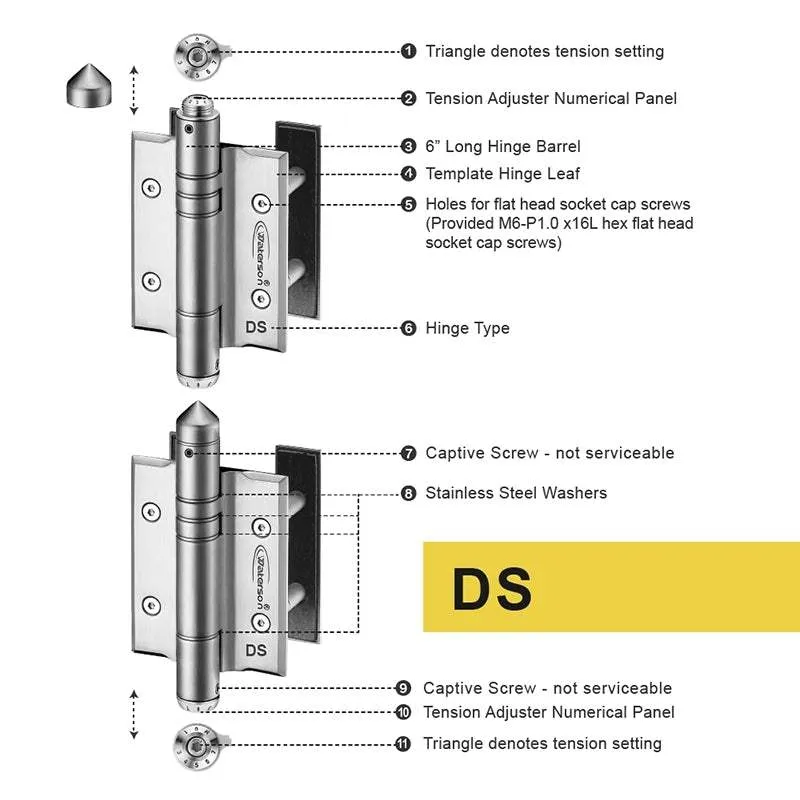

- Numerical adjustment panel on hinge end to set up precise tension
- Mechanical only mechanism supporting heavy duty and fully exterior
- An aesthetically pleasing and sleek all-in-one component
- One million cycle testing ensures low maintenance longevity
-
-

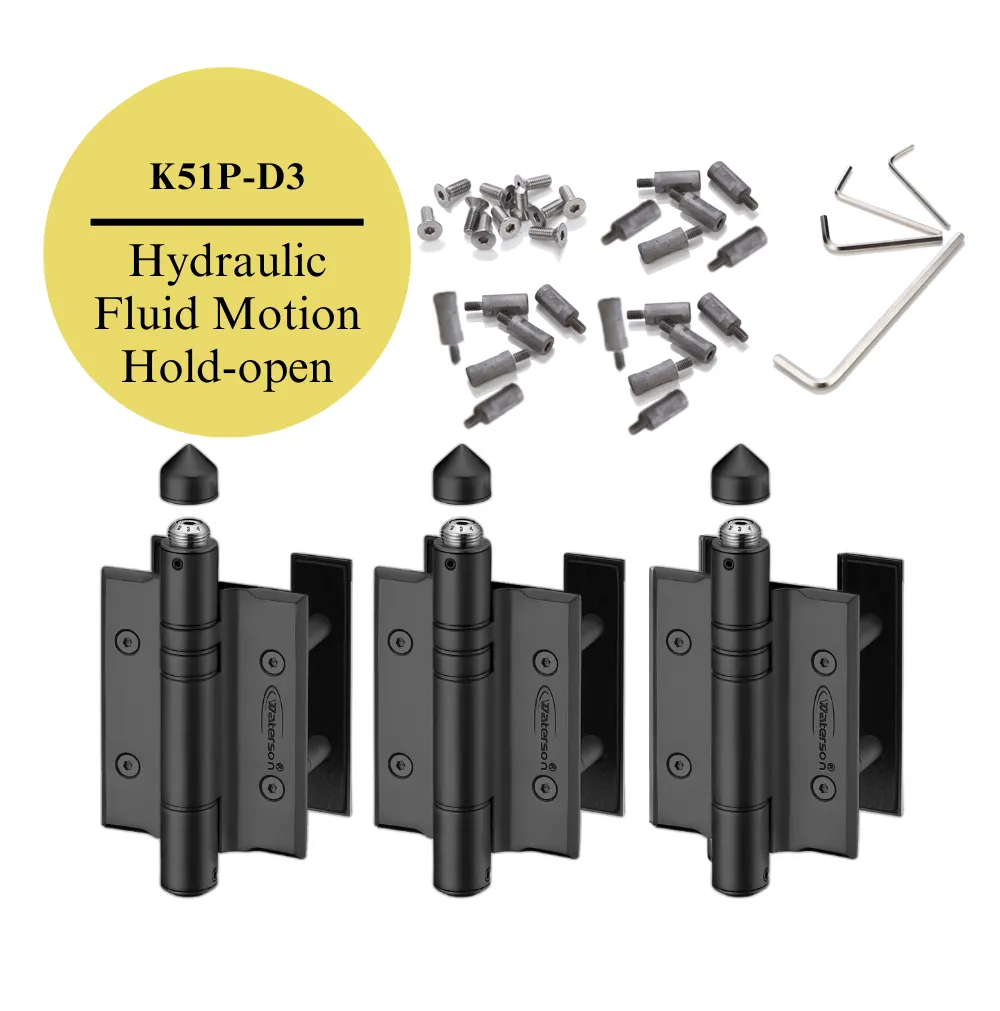

Installation Kits
- 304 stainless steel Hex Drive Flat Head M6 x P1 x 0.630"L screws included -- eight (8) of each type per hinge.
- 5mm & 4mm& 3mm& 2.5mm hex Allen wrenches
- Sets include 1” extenders.

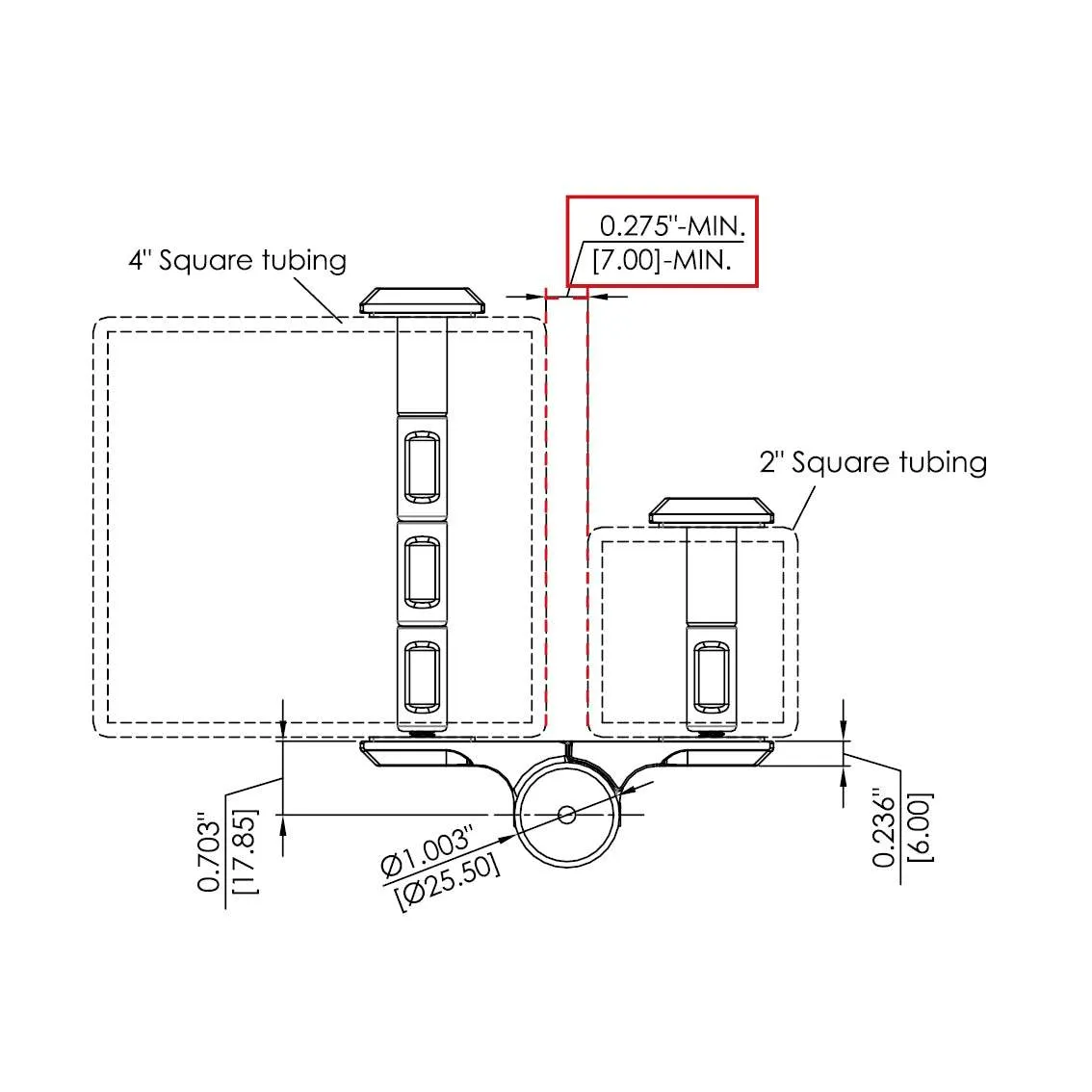

- * 1”& 2” Post Set includes four (4) extenders
- * 2”,3”,4” Post Set includes twelve (12 ) extenders
Compliance Standards

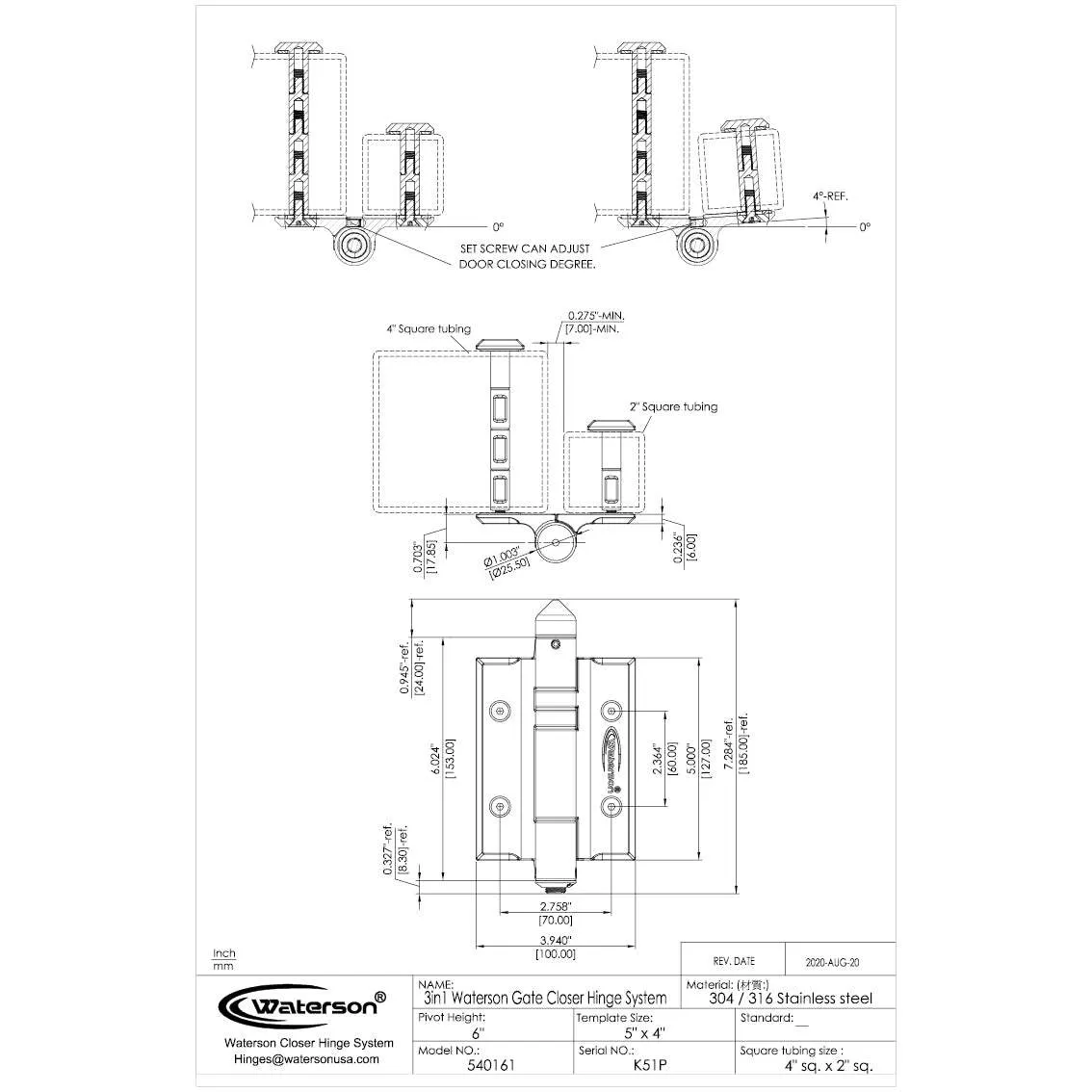

- Hinge Leaf Size: 5” x 3.940”
- CSI Spec 08 7100 Door Hardware & 08 7808 Self-closing Hinges
- ADA Force: opening force no more than 5 lbs
- ADA Closing Speed: at least 5 sec to move from m 90° to 12°
-
Product SKU K51P-D3 Hinge Type Full Surface Hinge Material Stainless Steel 304 Door Weight Up to 260lbs (75kg) Approx Door Size 1150mm W x 2200mm H (4ft x 7ft) Posts Thickness 1” & 2”, 2" & 3" & 4" Self-closing o Fluid Motion o Hold-open o Fixing Method Screw-On, only spot weld AFTER speed adjustment Color/Finish Satin Brushed or Black Combination/Quantity DS.HA.SB,3 Pack -
